ALUMINE TWO
- 2 路前置低音反射孔設計
- 頻率響應 : 45Hz – 30kHz
- 連續承受功率 : 100W IEC, 200 W (峰值)
- 建議擴大機功率 : 10W to 200W
- 靈敏度 : 93 dB SPL/2.83V/1m
- 阻抗 : 8 Ohms (最小 6 Ohms)
- 尺寸 : H 330mm x W 230mm x D 275mm
- 重量 : 17 Kg each
- 低音單體：6.5 英吋單體，採用高強度的纖維錐體振膜，雙面皆有阻尼樹脂
- 高音單體：鑲嵌于超微號角的 1英吋 公分複合材料振膜
- 採用發燒級電感，電容，與金屬薄膜電阻而製成的分音器
- Passive 2 ways with front Bass Reflex Design
- Frequency response : 45Hz – 30kHz
- Power handling : 100W IEC, 200 W (peak)
- Recommended amplifier from 10W to 200W
- Sensivity : 93 dB SPL/2.83V/1m (measured in a semi-reverberant room)
- SPL max : 109 dB
- Nominal impedance : 8 Ohms (minimum 6 Ohms)
- Dimensions : H 330mm x W 230mm x D 275mm
- Weight : 17 Kg each
- Woofer: One 16.51 cm (6.5in) High-strength cellulose fiber cone impregnated and coated on both sides with damped resins
- Tweeter : One 2.54cm (1in) Fabric dome, loaded by a small horn machined in the 15 mm aluminium front plate
- Air core inductors, Polypropylene capacitors, Metal film resistors
- Special finitions on demand : 30 different anodised colours, polished aluminium, wood or leather veneer, 18 carat gold PVD, pure diamond powder, Fall’art concept
ALUMINE THREE
- 3 路 4 單體落地揚聲器
- 頻率響應 : 32–35 kHz
- 連續承受功率 : 150W RMS, 300 W (峰值)
- 建議擴大機功率 : 10W to 200W
- 靈敏度 : 93 dB / SPL Max 109 dB
- 阻抗 : 8 Ohms (最小 6 Ohms)
- 尺寸 : H 1050 mm x W 250 mm x D 330 mm
- 重量 : 70 Kg each
- 2個8 英吋低音單體，1個5.25英吋釹磁鐵中音單體，1個釹磁高音
- 3-way vertical speaker with 4 high efficiency transducers
- Frequency response : 32Hz – 35 kHz
- Power handling : 150W RMS, 300W peak
- Recommended amplifier : from 10W to 200W per channel
- Sensitity : 93dB / SPL Max 109 dB
- Nominal impedance : 8 Ohms
- Lowest impedance : 6 Ohms
- Dimensions : H 1050 mm x W 250 mm x D 330 mm
- Total system weight : 70 kg each
- 2 x 8-inch woofers, 1 x 5 1⁄4-inch neodymium medium drivers, 1 x neodymium tweeter
ALUMINE FIVE
- 3 路 4 單體落地揚聲器
- 2 個 10 英吋低音，1 個 6.5 英吋釹磁鐵中音，1 個 1 英吋釹磁鐵高音
- 內置 4 個大型全鋁箱體，其中 2 個為密閉箱體（高音與中低音部份）
- 另外 2 個採用前置反射式設計的低音箱體（全部採用發燒級元件）
- 頻率響應 : 28Hz – 35kHz
- 連續承受功率 : 200W IEC, 400 W (peak)
- 靈敏度 : 94 dB
- 阻抗 : 8 Ohms (minimum 3 Ohms)
- 尺寸 : H 1200mm x W 280mm x D 380mm
- 重量 : 100 Kg each
- 3way floorstanding speakers with 4 high efficiency transducers
- 2x 10 inches woofers, 1x 6.5 inches neodymium medium drivers, 1 x neodymium tweeter
- Massive aluminum cabinet with 4 independent chambers, 2 closed (medium & tweeter) and 2 with laminated front ports
- Passive 3ways crossover, using audiophile high grade components
- Bi-wiring with WBT Nextgen pole terminals
- Frequency response : 28Hz to 35kHz
- Sensitivity : 94dB, half space
- Power handling : 200W RMS, 400W peak
- Nominal impedance : 8 ohms (minimum 3 ohms)
- Dimensions : H1200mm x W280mm x D380 mm
- Weight : 100Kg (including adjustable spikes)
ALUMINE SUB
- 站立式低音
- 2 個13英吋低音（一前一後）
- 全鋁式箱體，2 個獨立密閉箱體
- 頻率響應 : 18Hz – 100Hz
- 連續承受功率 : 1500W RMS
- 使用喇叭單體 : 13 inch x 2
- 箱體結構 : 由 2 個獨立音箱組成
- 尺寸 : H 600mm x W 400mm x D 700mm
- 重量 : 100 Kg each
- 適用於 Alumine TWO, 3WAY, FIVE, MOVIE
- Standing subwoofer
- 2 x 13 inches woofers mounted back to front (forces cancellation)
- Massive aluminum cabinet with 2 independent closed chambers
- Stackable (max 2 pces) with STENHEIM Mechanical Coupling System
- Modular configuration :
- System with 1, 2 or 4x AlumineSUB
- Passive: to be linked with external amplifier and Crossover
- Active: with integrated amplifier but without DSP-crossover
- LFE for home theater)
- Active DSP: with integrated amplifier and DSP-crossover
- Compatible with Alumine TWO, 3WAY, FIVE, MOVIE
- Frequency response : 18Hz to 100 Hz
- Power handling : 1500 W RMS
- Dimensions : H600mm x W400mm x D700 mm
- Weight : 100 Kg
ALUMINE MOVIE
- 5.1 到 9.2.4 多聲道配置
- 5 到 14 隻 Alumine TWO 喇叭
- 1 到 4 隻 Alumine SUB
- 頻率響應 : 15Hz – 30 kHz
- 連續承受功率 :
- Alumine SUB : 1500W each
- Alumine TWO : 200w （每個聲道）
- 尺寸 :
- Alumine TWO : H 330mm x W 230mm x D 275mm
- Alumine SUB : H 700mm x W 200mm x D 600mm
- 重量 :
- Alumine TWO : 17 Kg each
- Alumine SUB : 100 Kg each
- 5.1 to 9.2.4 multichannel configuration
- 5 to 14 Alumine TWO speakers
- 1 to 4 Alumine SUB (active sub bass generator)
- 2 to 4 ceiling speakers (end 2018)
- Modular configuration :
- System with 5 to 16 channels
- Expandable LFE sub channels with Alumine SUB
- High efficiency Passive speakers able to be connected directly to any Home cinema processor with multichannel amplifiers
- Frequency response : 15Hz to 30 kHz
- Power handling :
- Alumine SUB : 1500 W each ,
- Alumine TWO : 200W per channel
- Dimensions :
- Alumine TWO : H330mm x W230mm x D275 mm
- Alumine SUB : H700mm x W 200mm x 600mm
- Weight :
- Alumine TWO : 17kg
- Alumine SUB : 100kg

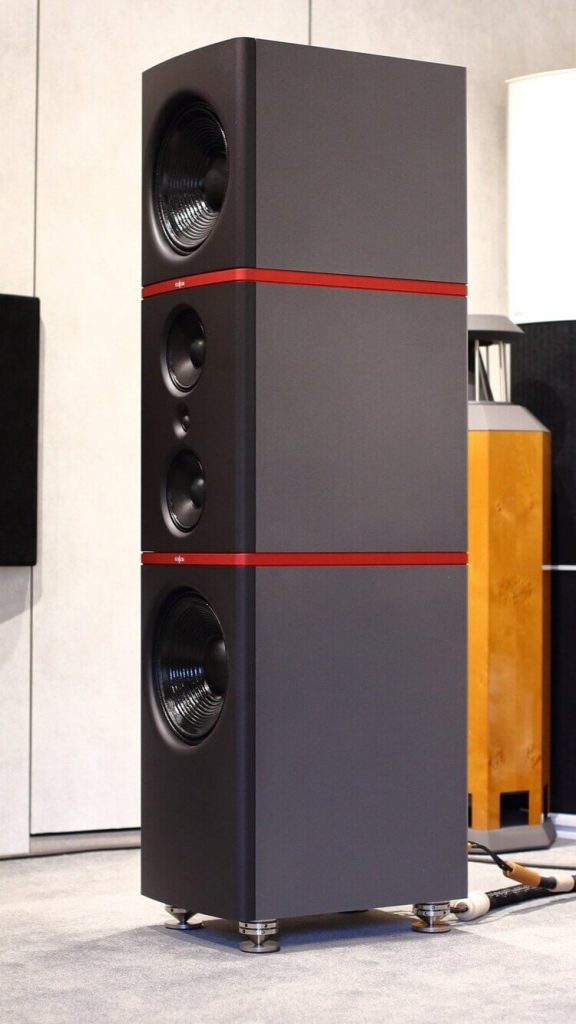

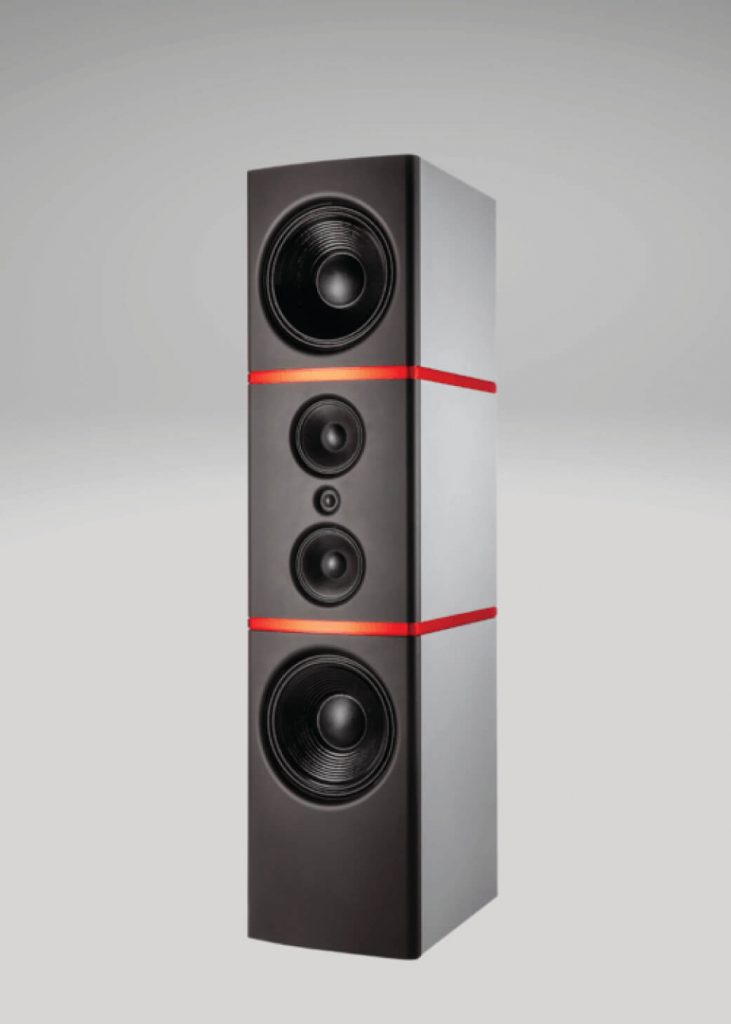

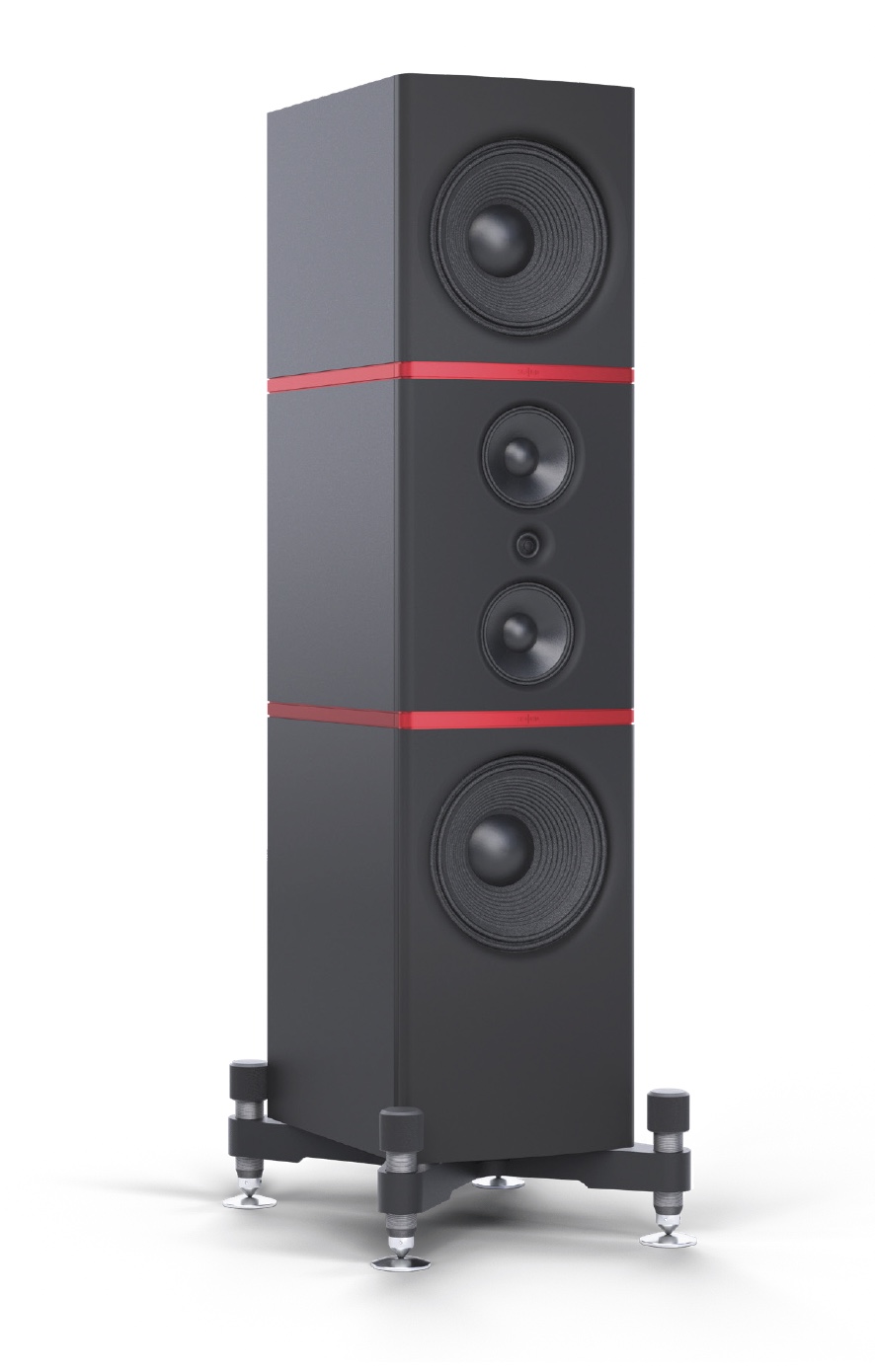

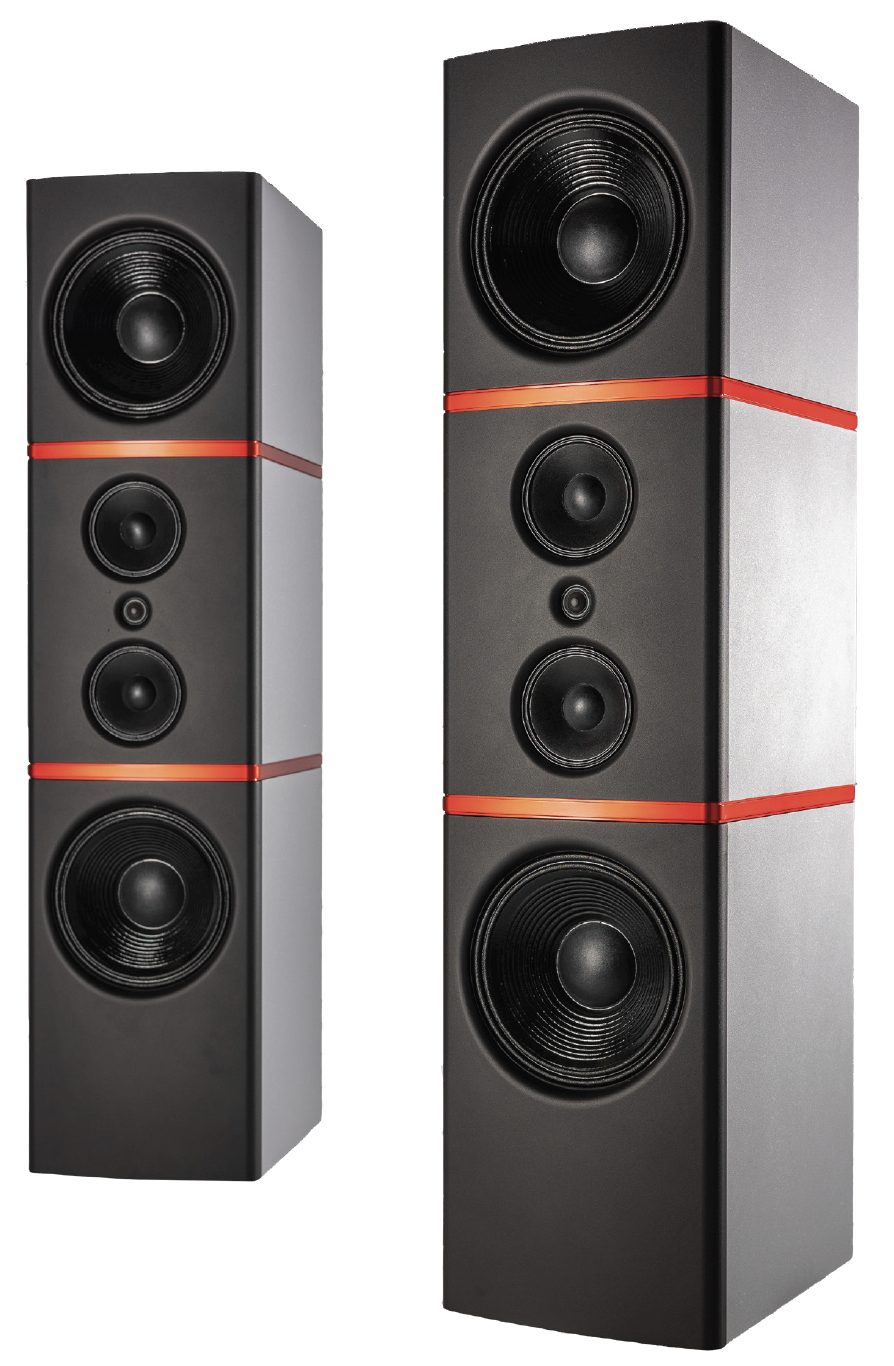

Reference Ultime Two
- Reference全系列喇叭搭載 5 個高效率的驅動單體
- 搭載全d’Appolito設計的 2 個 12 英吋低音、
- 2 個 6.5 英吋磁鐵中音、1個釹磁鐵圓頂高音
- 大型鋁合金音箱，包含6個獨立音室、3 個封閉式（中高音）
和 2 個後製反射孔 - 被動式 3 路分音，在獨立的音室中個別使用發燒級高品質組件
- 頻率響應 : 25Hz – 35kHz
- 靈敏度 : 95 dB
- 功率處理 : 400 W RMS ， 800 W峰值。
- 建議的最小功率 : 30W
- 標準阻抗 : 4歐姆
- 尺寸 : 高1535mm x 寬368mm x 深505mm
- High-sensitivity Reference Ultime loudspeaker system configuration
- Full d’Appolito array with 2×12” woofers, 2×6 1⁄2” midrange and 1x 25mm tweeter
- Massive aluminium cabinet with six independent, internal chambers.
- Sealed chambers for each midrange, the tweeter and crossover

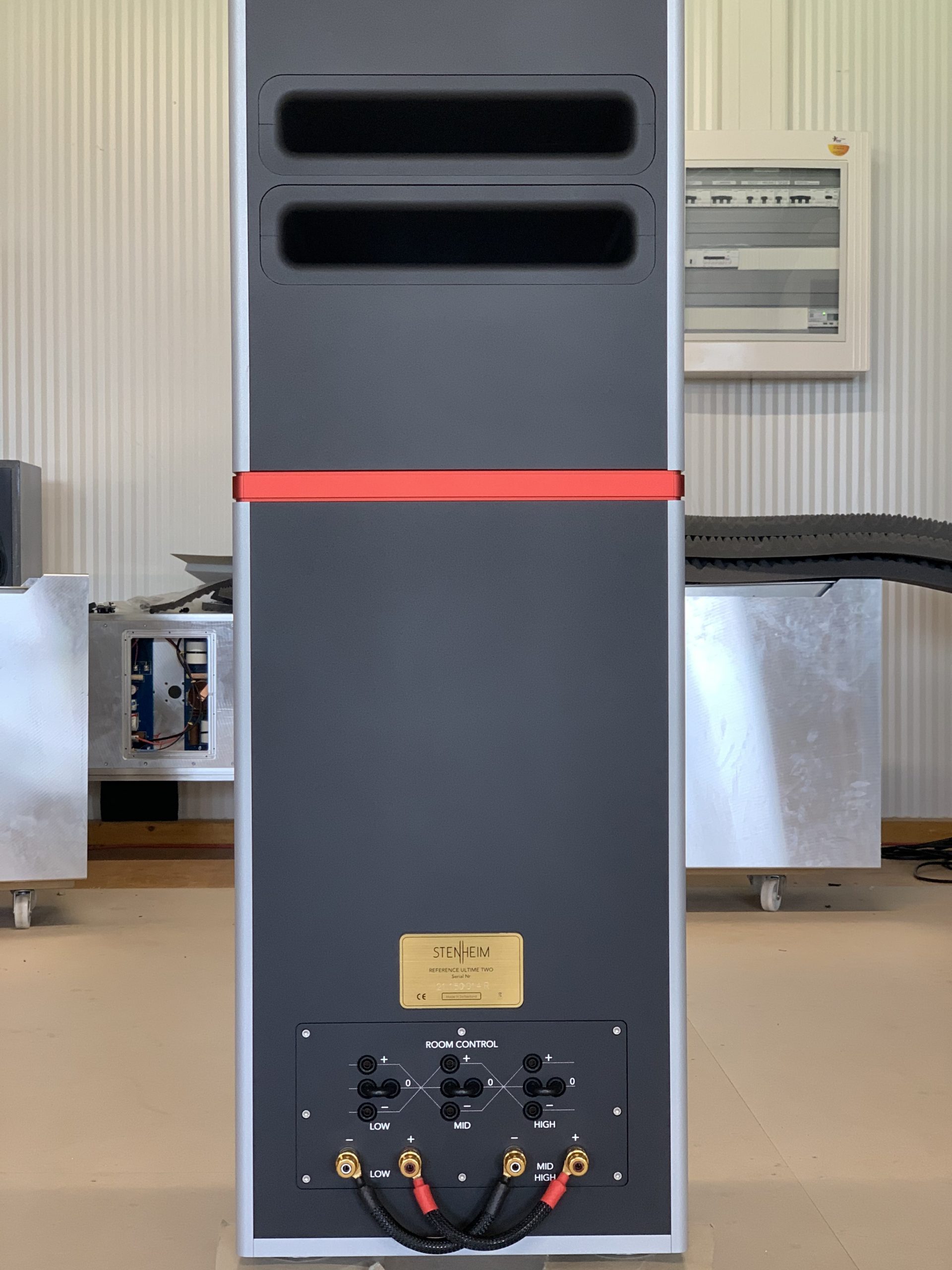

- Separate bass chambers loaded with rear-facing laminar flow ports
- Passive three-way crossover, using audiophile grade components, sealed in an airtight chamber
- Frequency response: 25Hz to 35kHz
- Sensitivity: 95dB
- Power handling: 400 WRMS, 800 W peak
- Minimum recommended amplifier power: 30 W
- Nominal impedance: 4Ω
- Dimensions: H1535 mm x W368mm x D505mm (H 60,4in x W 14,5in x D 19,9in)
- Weight: 231 Kg each
Reference Ultime Three
- Reference全系列喇叭具有7個全d‘Appolito配置的轉換器
- 4個32cm的高性能低音 、 2個17cm的釹磁鐵中音、
- 1個釹磁鐵高音、1個絲帶超高音
- 6個獨立封閉式音室的大型鋁合金音箱（沒有反射孔）
- 大型落地式被動4音路，配置用於中高音的內部分音器和用於中低音的外部分音器（2個）
- MTM可調整角度的中高音模板 : 可調節6種擴散角度 （選配）
- 可選被動式外置分音或主動 CH Precision 2 路電子分音
- 頻率響應 : 12Hz – 100kHz
- 靈敏度 : 96 dB SPL/2.83V/1m
- 連續承受功率 :
- 低音部份 : 1400W RMS
- 中高音部份 : 250W RMS
- 使用喇叭單體 :
- 低音 : 4 個 13 英吋長沖程單體
- 中音 : 2 個釹磁單體
- 高音 : 1 個釹磁單體
- 超高音 : 1 個絲帶超高音單體
- 箱體結構 :
- 由 6 個密閉式音箱組成
- 可調式中高音箱體
- 尺寸 : H 1670mm x W 370mm x D 560mm
- 重量 : 240 Kg each
- Reference loudspeakers with 8 transducers in full d’Appolito configuration
- 4 x 32 cm high excursion woofers, 2 x 17 cm neodimium medium, 1 x neodimium tweeter, 1 x Ribbon super tweeter
- Massive aluminium cabinet with 6 independent closed chambers (no ports)
- Motorized angle deviation of the MTM section
- Passive-active 5 ways system, with 2 analogue active mono crossovers
- Connection with 2 stereo or 4 mono separate amplifiers
- Frequency response : 15Hz to 100Khz
- Power handling : Bass section: 1400 W RMS – Medium-tweeter section: 250 W RMS
- Sensitivity : min 96dB SPL/2.83V/1m
- Dim : H 1670mm x W 370mm x D 560 mm
- Weight : approx. 240kg each
- Stereo active analogue 2 ways crossover and 3 ways passive corssover
Reference Ultime Five
- 每邊 4 個對稱運作以消諧振的全新設計 13 英吋高性能低音單體
- 每邊 2 個 6.5 英吋釹磁中音，1 個 1 英吋釹磁高音， 1 個鋁帶超高音
- 搭配 2 到 4 隻 Alumine SUB
- MTM 可調角度中高音模塊
- 頻率響應 : 12Hz – 100kHz
- 靈敏度 : 96 dB SPL/2.83V/1m
- 連續承受功率 :
- Alumine SUB : 2 或 4 x 1500W RMS
- 低音部份 : 1400W RMS
- 中高音：250W RMS
- 左右聲道系統總功率：100～7500 W RMS
- 尺寸 :
- 2 x H 1720mm x W 370mm x D 560mm
- 2 x H 600mm ( or 1200) x L 400mm x D 700mm
- 重量 : 2 x 240 Kg and 2 or 4 x 100 kg
- Reference speaker system
- 2 full range towers with 2 x 8 transducers in full d’Appolito
- 8 x 13 inches woofers
- 4 x 6.5 inches neodymium medium drivers,
- 2 x neodymium tweeters
- 2 x ribbon super tweeters
- 2 x back ribbon super tweeters
- 2 or 4 Alumine SUB with :
- 4 or 8 x 13 inches high excursion subwoofers,
- 2 or 4 x 1500W monoblock amps
- 2 full range towers with 2 x 8 transducers in full d’Appolito
- Motorized angle deviation of the MTM section
- Passive-active 5 ways system,
- with 2 analogue active mono crossovers
- Frequency response : 12Hz to 100kHz
- Power handling :
- Alumine SUB including mono amplifiers : 2 or 4x 1500W
- Bass section : 1400 W RMS
- Medium-tweeter section : 250 W RMS
- Total power handling : 100 to 7’500 W RMS
- Sensitivity : 96 dB SPL/2.83V/1m
- Dimensions :
- 2x H1720mm x W370mm x D560 mm and
- 2x H600 (or 1200) x L400 x D700
- Weight : 2 x 240 Kg and 2 or 4x 100kg
- STENHEIM bass management system
reference statement
- 每邊 4 個對稱運作以消諧振的全新設計 13 英吋中低音單體
- 每邊 6 個對稱運作以消諧振的全新設計 13 英吋超低音單體
- 每邊 2 個 6.5 英吋釹磁中音，1 個 1 英吋釹磁高音， 1 個鋁帶超高音
- 4 柱式大型全鋁箱體內建 24 個獨立的密閉單元腔體
- MTM 可調角度中高音模塊
- 雙單聲道主動式 CH Precision 3 路電子分音
- DSD 數模混合低頻管理系統
- 超低音內建獨立 5000 w 功率放大器 （可選）底座為大型全鋁諧振控制模塊
- 頻率響應 : 10Hz – 100kHz
- 靈敏度 : 96 dB SPL/2.83V/1m
- 連續承受功率 :
- 超低音部份 : 5000W RMS
- 低音部份 : 1400W RMS
- MTM 中高音：250W RMS
- 左右聲道系統總功率：超過 10,000 W RMS
- 尺寸 : 4 x H 1890mm x W 370mm x D 560mm
- 重量 : 300 Kg each
- Reference speaker system:
- 2 Reference full rage speakers with 2 x 8 transducers in full d’Appolito configuration
- 2 Reference sub towers with 2 x 6 transducers
- 2 x 3 monoblock amplifiers of 1200 w each
- 20 x 13 inches high excursion woofers, 4 x 6.5 inches neodymium medium drivers, 2 x neodymium tweeters and 2 x Ribbon supertweeters
- 4 massive aluminium cabinets with 24 independent closed chambers
- Motorized angle deviation of the MTM section
- Passive-active 5 ways system, with analogue active crossover for bass and sub woofer section
- Connection with 2 stereo or 4 mono separate amplifiers (sub towers are self powered)
- Frequency response : 10Hz to 100kHz
- Power handling : Sub Tower including 3 monoblock amplifiers: 3600 W – Bass section: 1400 W RMS – Medium-tweeter section: 250 W RMS
- System total power : more than 10’000 W RMS
- Sensitivity : 96dB SPL/2.83V/1m
- Max SPL : 122 dB
- Dim : 4x H 1890mm x W 370mm x D 560 mm
- Weight : 4 x 300 Kg (including Ultimate Reference Stands)
- Filter optimized in frequency, impedance and phase
- 2 x mono active analogue 3 ways crossover
